Plot Blended Survival Curves for LR and DR Populations

Produces a ggplot comparing up to four survival curves: disease-specific blended LR, disease-specific blended DR, net LR, and net DR. Designed to give a quick visual QC check after running blend_survival and make_background_surv.

Usage

plot_survival_curves(
  S_blend_L,
  S_blend_D,
  U_L = NULL,
  U_D = NULL,
  tumour = "Tumour",
  time_unit = "Years"
)

Arguments

S_blend_L

A two-column tibble (time, surv) — blended disease-specific LR survival from blend_survival.

S_blend_D

A two-column tibble (time, surv) — blended disease-specific DR survival.

U_L

A two-column tibble (time, surv) — net LR survival (disease-specific × background). Pass NULL to omit.

U_D

A two-column tibble (time, surv) — net DR survival. Pass NULL to omit.

tumour

Character scalar used in the plot title (default "Tumour").

time_unit

Character scalar for the x-axis label (default "Years").

Value

A ggplot object.

Examples

# \donttest{
data(lifetable_seer)

t <- 0:5
s_lr <- c(1, 0.9959, 0.9886, 0.9831, 0.9783, 0.9754)
s_dr <- c(1, 0.5491, 0.4396, 0.3945, 0.3630, 0.3410)
grid <- seq(0, 39, by = 1)

ipd_L <- prep_ipd(t, s_lr)
ipd_D <- prep_ipd(t, s_dr)
mods_L <- fit_models(ipd_L[-1, ])
mods_D <- fit_models(ipd_D[-1, ])
wts_L  <- compute_weights(extract_ic(mods_L, "AIC"), 3, "AIC")
wts_D  <- compute_weights(extract_ic(mods_D, "AIC"), 3, "AIC")
SL     <- blend_survival(mods_L, wts_L, grid)
#> New names:
#> • `surv` -> `surv...1`
#> • `surv` -> `surv...2`
#> • `surv` -> `surv...3`
SD     <- blend_survival(mods_D, wts_D, grid)
#> New names:
#> • `surv` -> `surv...1`
#> • `surv` -> `surv...2`
#> • `surv` -> `surv...3`

lt     <- lifetable_seer
lt$btrate_LR <- lt$Males * 0.58 + lt$Females * 0.42
lt$btrate_DR <- lt$Males * 0.69 + lt$Females * 0.31
BL <- make_background_surv(lt, 61, "btrate_LR", grid)
BD <- make_background_surv(lt, 62, "btrate_DR", grid)

UL <- dplyr::mutate(
  dplyr::left_join(SL, BL, by = "time"),
  surv = surv.x * surv.y
)[, c("time", "surv")]
UD <- dplyr::mutate(
  dplyr::left_join(SD, BD, by = "time"),
  surv = surv.x * surv.y
)[, c("time", "surv")]

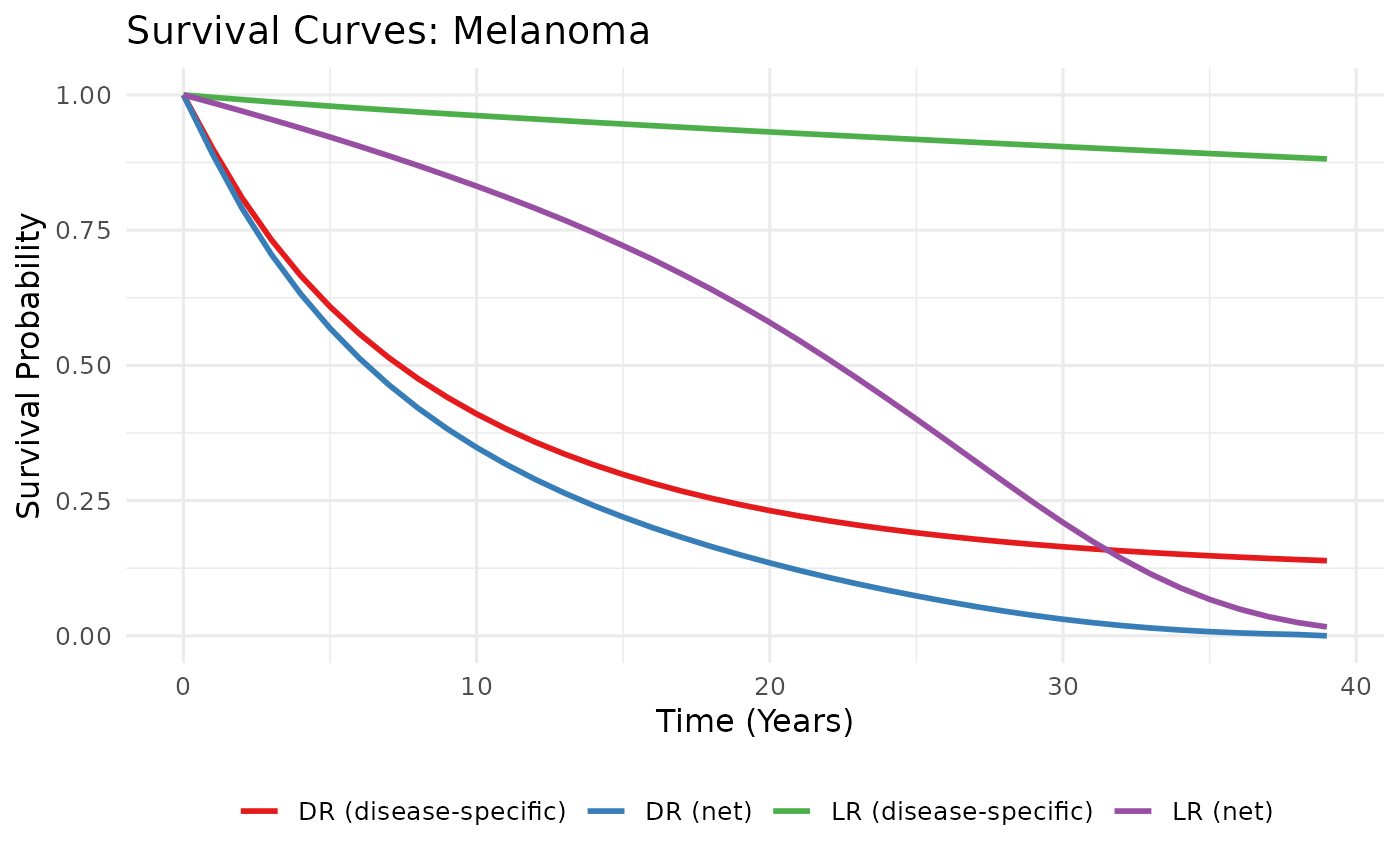

p <- plot_survival_curves(SL, SD, UL, UD, tumour = "Melanoma")
p

# }
